수축튜브

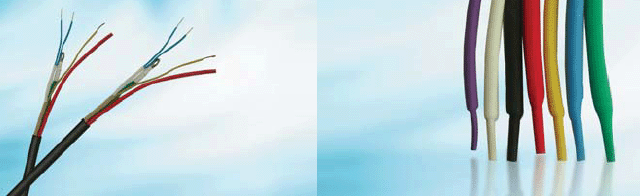

1. KEHS-225

   KEHS-225 600V 125°C 2:1
   KEHS-225 is a very flexible, flame-retardant, radiation cross - linked heat shrinkable Polyolefin Tube.
   lt is designed for a wide range of applications including insulation of electric and electronic parts.
   such as wire strain relief, wire terminal resistors and binding of Wires.

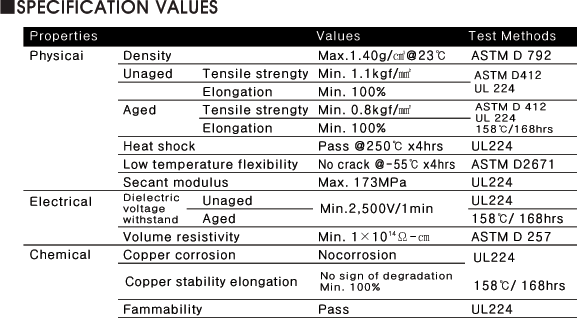

   DESIGN
   shrink ratio : 50% or more in the radial direction 7% or less in the axial direction.
   operation temperature : -55°C to 125°C
   flammability : UL VW-1
   high resistance to chemical and oils.
   standard

   UL 224 ( File N0. E221576)













Material : Polyolefin

Description


Operation Temperature

Voltage Rating

Standard

Applications





Type
· Flexible
· flame Retardant (VW-1)
· General purpose

125°C

600V

UL-224

· Wire Harness
· Insulation for electrical strain relief.









[출처: 이피에스 ]   수축튜브
